It is possible to move an object in a form at runtime. By reading in the movements of a mouse pointer and clicks using GET MOUSE, a reference is made in which the OBJECT MOVE command can change the object's position. Here are code samples to implement:

Code to read the mouse in a form method:

C_LONGINT(x;y;mbutton) // Mouse X, Y, and click state C_LONGINT(temp_x_movement) // Mouse movement in X C_LONGINT(temp_y_movement) // Mouse movement in Y Case of    : (Form event=On Load)    ARRAY LONGINT($value;3)    $value{1}:=On Mouse Enter // Event On Mouse Enter    $value{2}:=On Mouse Leave // Event On Mouse Leave    $value{3}:=On Mouse Move // Event On Mouse Move    OBJECT SET EVENTS(*;"@";$value;Enable events others unchanged) // Set all objects in form to mouse events    OBJECT SET EVENTS(*;OBJECT Get name(Object current);$value;Enable events others unchanged) // Set form to mouse events    : (Form event=On Mouse Leave)    SET TIMER(0)    : (Form event=On Mouse Enter)    SET TIMER(1)    : (Form event=On Timer)    GET MOUSE(x;y;mbutton) End case

The move_obj_at_runtime method is placed in the object's method:

// Name: move_obj_at_runtime // // Description: Moves an object that is in focus // of a form using the X, Y, and clicks of GET MOUSE // at run time. // (Note process variables x, y, mbutton, // temp_x_movement, temp_y_movement, are intialized // in the parent form method) // --------------------------------------------------- C_LONGINT($left;$top;$right;$bottom;$avg;$avg_x;$avg_y) C_TEXT($obj_name) $obj_name:=OBJECT Get name(Object current) Case of    : (Form event=On Mouse Enter)    OBJECT SET ENABLED(*;$obj_name;False)    : (Form event=On Mouse Move)    OBJECT GET COORDINATES(*;$obj_name;$left;$top;$right;$bottom)    If (mbutton=1) // left click on the mouse hold down to move the object        // Moving Both X and Y       If ((temp_x_movement>=$left) & (temp_x_movement<=$right) & (temp_y_movement>=$top) & (temp_y_movement<=$bottom))          $avg_x:=(($right-$left)/2)+$left          $avg_y:=(($top-$bottom)/2)+$top          If ((temp_x_movement>$avg_x) & (temp_y_movement>$avg_y))             OBJECT MOVE(*;$obj_name;-(temp_x_movement-x);-(temp_y_movement-y);0;0) // Move left          Else             OBJECT MOVE(*;$obj_name;x-temp_x_movement;y-temp_y_movement;0;0) // Move right          End if       End if    End if    : (Form event=On Mouse Leave)    OBJECT SET ENABLED(*;$obj_name;True) End case temp_x_movement:=x temp_y_movement:=y

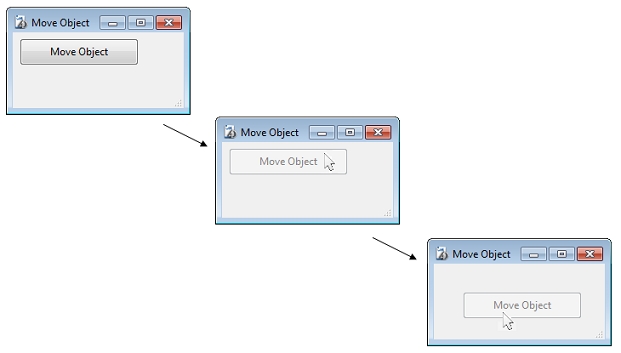

Example below shows a sample form with a button being moved while holding the left mouse button:
