Tech Tip: TimePicker LCD widget in v14 with a background
PRODUCT: 4D | VERSION: 14.0 | PLATFORM: Mac & Win
Published On: August 11, 2014
TimePicker LCD is a new widget feature in v14. The widget is transparent and does not have a background. The following picture below shows an effect with a black background and blue time display:

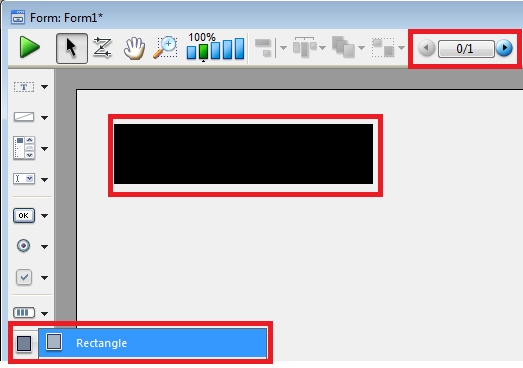

To get this effect with the TimePicker LCD widget, it would need to be on top of an an object (for example: rectangle). Placing the rectangle object and setting the fill color to black in page 0 of the form would give the background effect shown in red below:

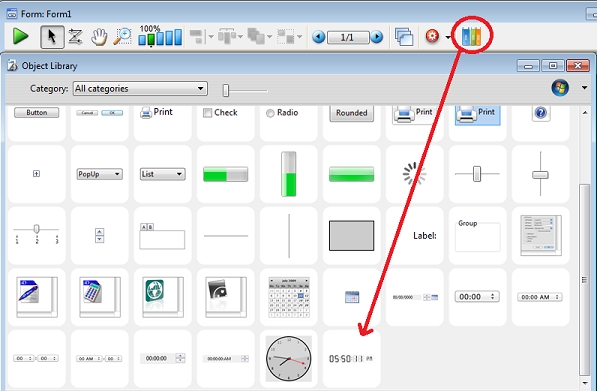

The TimePicker LCD widget is placed on a page 1 (or another other page except 0) where it would need to be aligned with the object on the background. Picture below shows the location to access the widget in red below:

The following code will set font color of the TmePicker LCD widget on the form "On Load" event:
See Also:

To get this effect with the TimePicker LCD widget, it would need to be on top of an an object (for example: rectangle). Placing the rectangle object and setting the fill color to black in page 0 of the form would give the background effect shown in red below:

The TimePicker LCD widget is placed on a page 1 (or another other page except 0) where it would need to be aligned with the object on the background. Picture below shows the location to access the widget in red below:

The following code will set font color of the TmePicker LCD widget on the form "On Load" event:
Case of : (Form event=On Load) TimePicker LCD SET COLOR ("Subform1";0x00FF) //Color set to blue End case |
