Tech Tip: Utility Method to Get Tables' UUIDs

PRODUCT: 4D | VERSION: 15.1 | PLATFORM: Mac & Win

Published On: April 20, 2016

Below is a method to obtain the UUID of a Table in the 4D Database.

// Method: GetTableUUID
// Parameters:
// $1 - String Table Name
// Output:
// $0 - String Table's UUID
// Method does not check if table actually exists
//-----------------------------------------------------------------------

C_TEXT($1;$tableName_t)
C_TEXT($0)
C_TEXT($struct_t;$xmlRef_t;$elemRef_t;$elemName_t;$value_t;$res_t)
C_BOOLEAN($stop_b;$failed_b)

EXPORT STRUCTURE($struct_t)
$xmlRef_t:=DOM Parse XML variable($struct_t)
DOM GET XML ELEMENT NAME($xmlRef_t;$elemName_t)
$tableName_t:=$1
If ($elemName_t="base")
  $elemRef_t:=DOM Get first child XML element($xmlRef_t;$elemName_t)
  $stop_b:=False
  While ($stop_b=False)
    If ($elemName_t="table")
      DOM GET XML ATTRIBUTE BY NAME($elemRef_t;"name";$value_t)
      If ($value_t=$tableName_t)
        ON ERR CALL("err_method")
        DOM GET XML ATTRIBUTE BY NAME($elemRef_t;"uuid";$res_t)
        If (ok=0)
          $res_t:="false"
        Else
          $0:=$res_t
        End if
        ON ERR CALL("")
        $stop_b:=True
      End if
    End if
    If ($stop_b=False)
      $elemRef_t:=DOM Get next sibling XML element($elemRef_t;$elemName_t)
      If (OK=0)
        $stop_b:=True
      End if
    End if
  End while
End if
DOM CLOSE XML($xmlRef_t)

Example

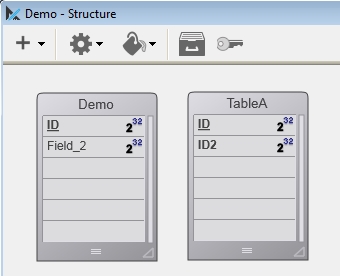

For the following tables:

Test Method:

C_TEXT($result1;$result2)
$result1:=GetTableUUID ("Demo")
$result2:=GetTableUUID ("TableA")

Results:
