Tech Tip: Calculate Time Difference in SQL
PRODUCT: 4D | VERSION: 14.x | PLATFORM: Mac & Win
Published On: October 28, 2016

In 4D, the SQL engine does not allow athrimetic calculations between two time types.

For the following table:

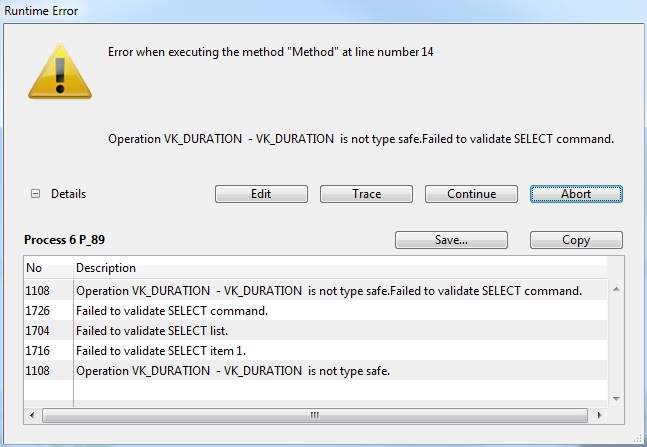

The following code will generate an error

ARRAY TIME(Times;0)

Begin SQL
   SELECT (Tend-Tstart)
   FROM TimeTest
   Into :Times
End SQL




To work around this a simple method can be created and ran inside the SQL Statment.

// Util_SQL_TIMEDIFF
//
// Desription:
// Used For SQL calculation of Diffiference between two times
//
// Parameters:
// $1: End Time (Larger Value of the Two)
// $2: Start Time (Lesser Value of the Two)
// Result:
// $0: Time difference between end and start times
// ----------------------------------------------------

C_TIME($1;$end_t)
C_TIME($2;$start_t)
C_TIME($0;$dif_t)

If (Count parameters=2)
   $end_t:=$1
   $start_t:=$2

   $dif_t:=$end_t-$start_t
   $0:=$dif_t
End if

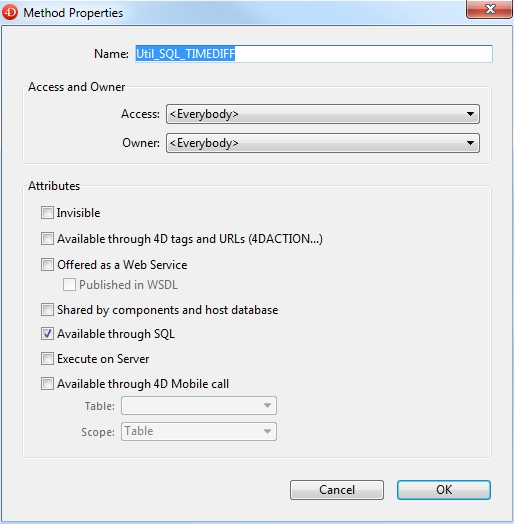

The "Available through 4D Mobile call" Method Properrty must be toggled on:


Then the method can be used in the SQL statement as follows:

ARRAY TIME(Times;0)

Begin SQL
   SELECT {FN Util_SQL_TIMEDIFF(Tend,Tstart) AS DURATION}
   FROM TimeTest
   Into :Times

End SQL
