Tech Tip: Graphing the number of occurrences of distinct values

PRODUCT: 4D | VERSION: 16 | PLATFORM: Mac & Win

Published On: April 19, 2017

From Tech Tip #77721, the method DISTINCT_ATTR_VALUES_COUNT will find the number occurrences of each distinct values found in a given object field selection. This method will visually display the results with the graph command as shown below:

// --------------------------------------------------------------------------------
// Name: GRAPH_DIST_ATTR_VAL_CNT
// Description: Method will look at the selected field object records and extract
// the distinct values of a property and number of occurrances then graph it.
// Input:
// $1 (LONGINT) - Graph choice (#1-8 from the GRAPH command)
// $2 (POINTER) - Pointer to the Object field
// $3 (TEXT) - Attribute name to find the number occurrances
//
// Output:
// $0 (POINTER) - Graph picture
// --------------------------------------------------------------------------------
C_LONGINT($1;$graphChoice;$type)
C_POINTER($2;$fieldPtr)
C_TEXT($3;$attr)
C_PICTURE($0;$graphPic)

ARRAY LONGINT($distVCnt;0)

If (Count parameters=3)
    $graphChoice:=$1
    $fieldPtr:=$2
    $attr:=$3

    $fieldPtr:=Field(Table($fieldPtr);Field($fieldPtr))

    // Figure out the type because we don't know the type
    $type:=OB Get type($fieldPtr->;$attr)

    //Execute formula to determine the type of array to create
    Case of

     : ($type=Is text)
      ARRAY TEXT($distAttrVArrT;0)
      DISTINCT_ATTR_VALUES_COUNT ($fieldPtr;$attr;->$distAttrVArrT;->$distVCnt)
      GRAPH($graphPic;$graphChoice;$distAttrVArrT;$distVCnt) //Draw the graph

     : ($type=Is real)
      ARRAY LONGINT($distAttrVArrNum;0)
      DISTINCT_ATTR_VALUES_COUNT ($fieldPtr;$attr;->$distAttrVArrNum;->$distVCnt)
      GRAPH($graphPic;$graphChoice;$distAttrVArrNum;$distVCnt) //Draw the graph

     : ($type=Is Boolean)
      ARRAY BOOLEAN($distAttrVArrBool;0)
      DISTINCT_ATTR_VALUES_COUNT ($fieldPtr;$attr;->$distAttrVArrBool;->$distVCnt)
      GRAPH($graphPic;$graphChoice;$distAttrVArrBool;$distVCnt) //Draw the graph

     : ($type=Is time)
      ARRAY TIME($distAttrVArrTime;0)
      DISTINCT_ATTR_VALUES_COUNT ($fieldPtr;$attr;->$distAttrVArrTime;->$distVCnt)
      GRAPH($graphPic;$graphChoice;$distAttrVArrTime;$distVCnt) //Draw the graph

     Else

    End case

    GRAPH SETTINGS($graphPic;0;0;0;0;False;False;True;$attr) //Set the legends

    $0:=$graphPic
End if

Here are a set of data in finding occurances of age.

Using the DISTINCT_ATTR_VALUES_COUNT results to these number of occurrances for each distinct value:

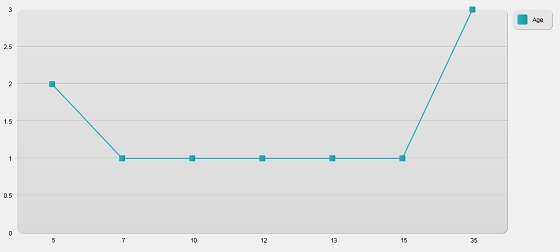

Example #1: Graphing the occurrances with option #4:

C_LONGINT($graphType)
C_PICTURE($graphPicture)
C_TEXT($attr)

ALL RECORDS([Table_1])

$attr:="Age"

$graphType:=4
$graphPicture:=GRAPH_DIST_ATTR_VAL_CNT ($graphType;->[Table_1]Field_obj;$attr)

Result:

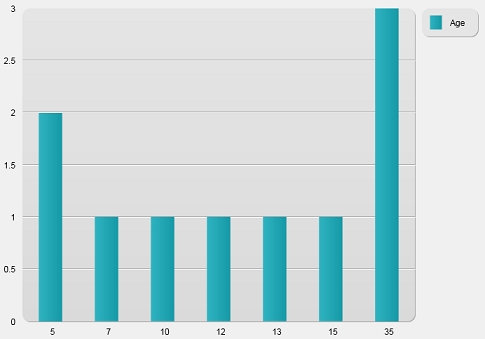

Example #2: Graphing the occurrances with option #5:

$graphType:=5
$graphPicture:=GRAPH_DIST_ATTR_VAL_CNT ($graphType;->[Table_1]Field_obj;$attr)

Result:

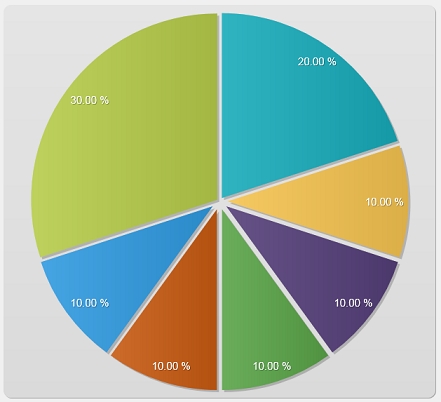

Example #3: Graphing the occurrances with option #7:

$graphType:=7
$graphPicture:=GRAPH_DIST_ATTR_VAL_CNT ($graphType;->[Table_1]Field_obj;$attr)

Result:

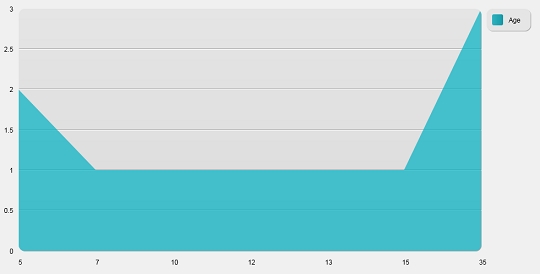

Example #4: Graphing the occurrances with option #8:

$graphType:=8
$graphPicture:=GRAPH_DIST_ATTR_VAL_CNT ($graphType;->[Table_1]Field_obj;$attr)

Result:
