Tech Tip: Determine the Listbox Data Source programmatically

PRODUCT: 4D | VERSION: 17R4 | PLATFORM: Mac & Win

Published On: February 8, 2019

Your current browser may not allow you to download the asset. We recommend Mozilla Firefox or Google Chrome.

Here is a utility method to determine the Listbox Data Source programatically:

// -----------------------------------------------------------
// Method: DETERMINE_DATA_SRC_LISTBOX_TYPE
// Description: Method will determine the data source of the
// Listbox
//
// Parameters:
// $1 (TEXT) - Listbox name
//
// Output:
// $0 (TEXT) - arrays, currentSelection, namedSelection,
// , collection, or (blank) for no type
// -----------------------------------------------------------
C_TEXT($1;$lbName)
C_TEXT($0;$value)
C_OBJECT($formObj;$elem)
C_COLLECTION($col)

$lbName:=$1
$formObj:=FORM Convert to dynamic(Current form name)
$col:=$formObj.pages

For each ($elem;$col)

  If ($elem#Null)
    If (OB Is defined($elem.objects;$lbName)=True)
      If (OB Is defined($elem.objects[$lbName];"listboxType")=False)
        $value:="arrays"
      Else
        $value:=$elem.objects[$lbName].listboxType
      End if
    End if
   End if
End for each

$0:=$value

Here is an example of determining an array based Listbox:

C_TEXT($type)

$type:=DETERMINE_DATA_SRC_LISTBOX_TYPE ("ListBox")
// arrays

Here is an example of determining an selection based Listbox:

$type:=DETERMINE_DATA_SRC_LISTBOX_TYPE ("ListBox")
// currentSelection or namedSelection

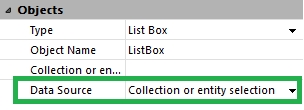

Here is an example of determing an Collection/Entity based Listbox:

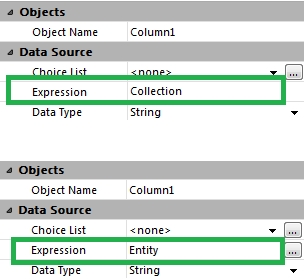

Also when looking at the first column of the Listbox that could have either a Collection or Entity (Object):

$type:=DETERMINE_DATA_SRC_LISTBOX_TYPE ("ListBox")
// collection

Commented by Vincent de Lachaux on March 11, 2019 at 2:28 AM

Since dot notation is available : For each ($o;FORM Convert to dynamic(Current form name).pages) Until (Length($Txt_dataSource)#0) If ($o.objects[$Txt_name]#Null) $Txt_dataSource:=Choose($o.objects[$Txt_name].listboxType=Null;"arrays";String($o.objects[$Txt_name].listboxType)) End if End for each
