Tech Tip: Create dynamic form with View Pro
PRODUCT: 4D View Pro | VERSION: 16 R6 (64-bit) | PLATFORM: Mac & Win
Published On: July 20, 2018
Your current browser may not allow you to download the asset. We recommend Mozilla Firefox or Google Chrome.
Log In

The ability to create dynamic forms is possible in v16R6. What is also possible is to dynamically create a 4D View Pro object on a dynamic form. Here is a simple method to create a dynamic form with a 4D View Pro object:

// -----------------------------------------------------------------
// Name: CREATE_DYNAMIC_FORM_WITH_VP_OBJ
// Description: Method will create a form with a 4D View Pro object
// that needs to specify the top and left coordinate with the width
// and height as well as the 4D View Pro object passed.
//
// Input Parameters:
// $1 (LONGINT) - Left coord in the form for 4D View Pro object
// $2 (LONGINT) - Top coord in the form for 4D View Pro object
// $3 (LONGINT) - Width size in pixels for 4D View Pro object.
// $4 (LONGINT) - Height size in pixels for 4D View Pro object.
// $5 (POINTER) - Pointer 4D View Pro object.
// ------------------------------------------------------------------
C_LONGINT($1;$left;$window)
C_LONGINT($2;$top)
C_LONGINT($3;$width)
C_LONGINT($4;$height)
C_POINTER($5;$vpObj;vpObj)
C_OBJECT($vp;$page;$form)

If (Count parameters=5)
  $left:=$1
  $top:=$2
  $width:=$3
  $height:=$4
  $vpObj:=$5
  vpObj:=$vpObj

  $vp:=New object("type";"view";"text";"ViewPro";"top";$top;"left";$left;\
  "width";$width;"height";$height;"sizingX";"grow";"sizingY";"grow";\
  "events";New collection("onVPReady");"method";"CREATE_DYNAMIC_FORM_WITH_VP_OBJ")

  $page:=New object("objects";New object("view";$vp))
  $form:=New object("pages";New collection(Null;$page);"rightMargin";0;\
  "bottomMargin";0)

  $window:=Open form window($form)
  DIALOG($form)
  CLOSE WINDOW($window)

Else

  If (Form event=On VP Ready)
   VP IMPORT FROM OBJECT ("view";vpObj->)
  End if

End if

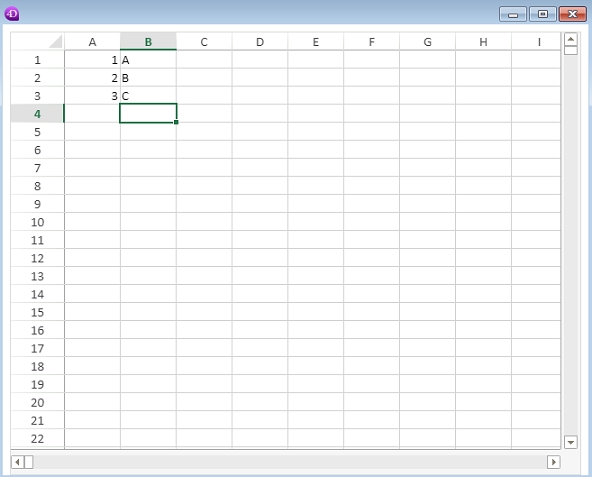

Here is a sample of running the method:

QUERY([TABLE_1];[TABLE_1]ID=1)
CREATE_DYNAMIC_FORM_WITH_VP_OBJ(0;0;650;500;->[TABLE_1]Field_obj) // View Pro Object
